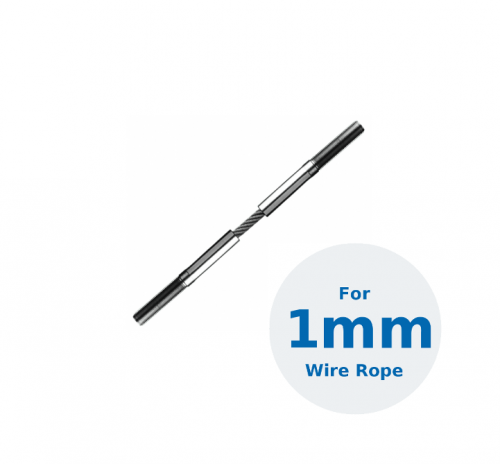

M4 Swaged External Threads for 1mm Rope

M4 Swaged External Threads for 1mm Rope

£14.38 Inc. VAT, £11.98 Ex. VAT

Swaged External Threads for 6mm Wire Rope Measurements

For accurate fabrication, please provide measurements from end of external thread to end of external thread at the opposing end as shown above. If you are passing the external thread through a post please allow for the length of the appropriate hex/dome nuts to be accounted for when taking your measurements.

pdf-small Download Catalogue Pages

SKU: 30850-0100 / 30855-0100 Categories: ,


 Please note the different thread sizes for identical wire rope diameter.
Dimensions b is enlarged by 3 to 6% during the swaging process.

Right hand thread:

SKU DXF ø mm a b c ø d Kg
30850-0100-020 DXF 1 M4 29 20 4 0.003


Left hand thread:

SKU DXF ø mm a b c ø d Kg
30855-0100-020 DXF 1.0 M4 29 20 4 0.004

Swaged External Threads for 6mm Wire Rope

Additional information


External Thread

Rope Diameter


Rope Type

6 x 7 + WC

Thread Size


Thread Length



AISI 316

Installation Guide

1. Pass one end of the assembly through your first fixing point and secure loosely with a hex nut.
2. Pass the other end of your assembly through the other fixing point and again secure loosely with a hex nut.
3. Evenly tighten the nuts until desired tension is achieved.
4. Screw the dome nuts on either end of your assembly to apply the finishing touches.
