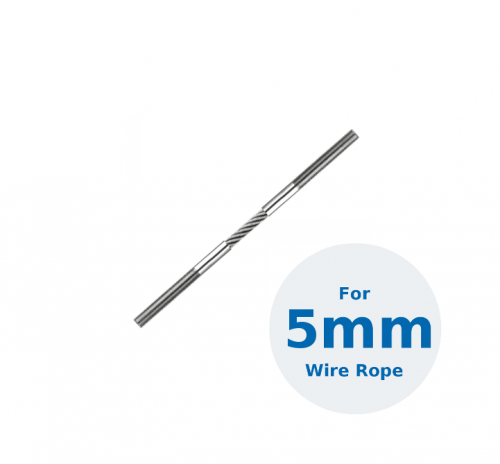

M5 Swaged Univiss Plus External Thread Ends for 5mm Rope

M5 Swaged Univiss Plus External Thread Ends for 5mm Rope

£15.92 Including VAT

For accurate fabrication, please provide measurements from end of external thread to end of external thread at the opposing end as shown above. If you are passing the external thread through a post please allow for the length of the appropriate hex/dome nuts to be accounted for when taking your measurements.

pdf-small Download Catalogue Pages

SKU: 30950-0500 / 30951-0500 Categories: ,

Description

Right hand thread:

SKU DXF ø mm a b c ø d Kg
30950-0500-30 DXF 5 M5 52 30 5.2 0.004
30950-0500-60 DXF 5 M5 82 60 5.2 0.008



Left hand thread:

SKU DXF ø mm a b c ø d Kg
30951-0500-30 DXF 5 M5 52 30 5.2 0.004
30951-0500-60 DXF 5 M5 82 60 5.2 0.008

M8 Swaged External Univiss Plus External Thread Ends for 8mm

Additional information

Fitting

External Thread

Rope Diameter

5mm

Rope Type

6 x 7 + WC

Thread Size

M5

Material

AISI 316

Installation Guide

1. Pass one end of the assembly through your first fixing point and secure loosely with a hex nut.
2. Pass the other end of your assembly through the other fixing point and again secure loosely with a hex nut.
3. Evenly tighten the nuts until desired tension is achieved.
4. Screw the dome nuts on either end of your assembly to apply the finishing touches.
